Product Description
Fast recovery ZP3500A tube Rectifier
YZPST-ZP3500A2200V
HIGH POWER FAST RECOVERY RECTIFIER Features:
. All Diffused Structure
. Fast Switching Performance
. Soft Reverse Recovery
. Rugged Ceramic Hermetic Package
. Pressure Assembled Device
ELECTRICAL CHARACTERISTICS AND RATINGS
Reverse Blocking
| Device Type VRRM (1) VRSM (1) | ||
| ZP3500A | 2200 | 2300 |
VRRM = Repetitive peak reverse voltage
VRSM = Non repetitive peak reverse voltage (2)
Notes:
All ratings are specified for Tj=25 oC unless otherwise stated.
(1) All voltage ratings are specified for an applied
50Hz/60zHz sinusoidal waveform over the temperature range -40 to +150 oC.
(2) 10 msec. max. pulse width
(3) Maximum value for Tj = 150 oC. (4) See parameter definition below :
Repetitive peak reverse leakage IRRM 10 mA 75 mA (3)
Conducting - on state
| Parameter | Symbol | Min | Max. | Typ | Units | Conditions |
| Average value of on-state current | IF(AV) |
| 3500 |
| A | Sinewave,180o conduction,Tc =70oC |
| RMS value of on-state current | IFRMS |
| 5400 |
| A | Nominal value |
| Peak one cycle surge (non repetitive) current |
IFSM |
| 68000
60000 |
| A A | 8.3 msec (60Hz), sinusoidal wave- shape, 180o conduction, Tj = 150 oC 10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 150 oC |
| I square t | I2t |
| 1.3x106 |
| A2s | 8.3 msec and 10 msec |
| Peak on-state voltage | VFM |
| 1.50 |
| V | IFM = 3000 A; |
| Reverse Recovery Current (4) | IRM(REC) |
|
|
| A | IFM = 1000 A; dIF/dt = 10 A/µs; Tjmax |
| Reverse Recovery Charge (4) | Qrr |
|
|
| µC | IFM = 1000 A; dIF/dt = 10 A/µs; Tjmax |
| Reverse Recovery Time (4) | tRR |
| * |
| µs |
|
| Parameter | Symb ol | Min. | Max. | Typ. | Units | Conditions |
| Operating temperature | Tj | -40 | +150 |
| oC |
|
| Storage temperature | Tstg | -40 | +150 |
| oC |
|
| Thermal resistance - junction to case | RΘ (j-c) |
| 0.023 0.046 |
| o C/W | Double sided cooled Single sided cooled |
| Thermal resistance - case to sink | RΘ (c-s) |
| .010 .020 |
| o C/W | Double sided cooled * Single sided cooled * |
| Mounting force | P | 6000 | 8000 |
| lb. |
|
| Weight | W |
|
|
| oz. g |
|
* Mounting surfaces smooth, flat and greased

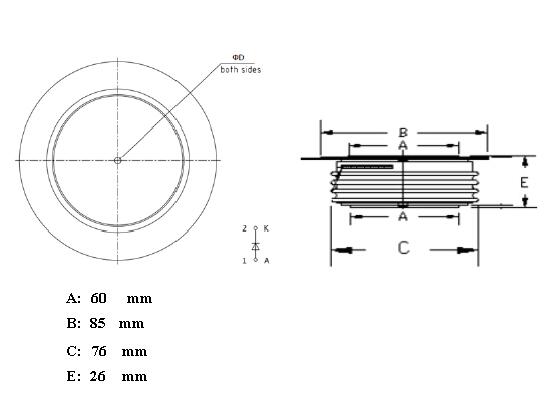

CASE OUTLINE AND DIMENSIONS
