Basic Info
Model No.: YZPST-BTA12-600SW
Brand: YZPST
Certification: RoHS
PG(AV): 1W
IT(RMS): 12A
VDRM / VRRM: 600/800V
ITSM: 115A
I2t: 70A2S
IGM: 4A
Additional Info
Packaging: For more detailed product information and transaction information, please contact our email address : info@yzpst.com
Productivity: 1000
Transportation: Ocean,Air
Place of Origin: China
Supply Ability: 10000
Certificate: ISO9001-2008,ROHS
HS Code: 85413000
Port: Shanghai
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF
Product Description

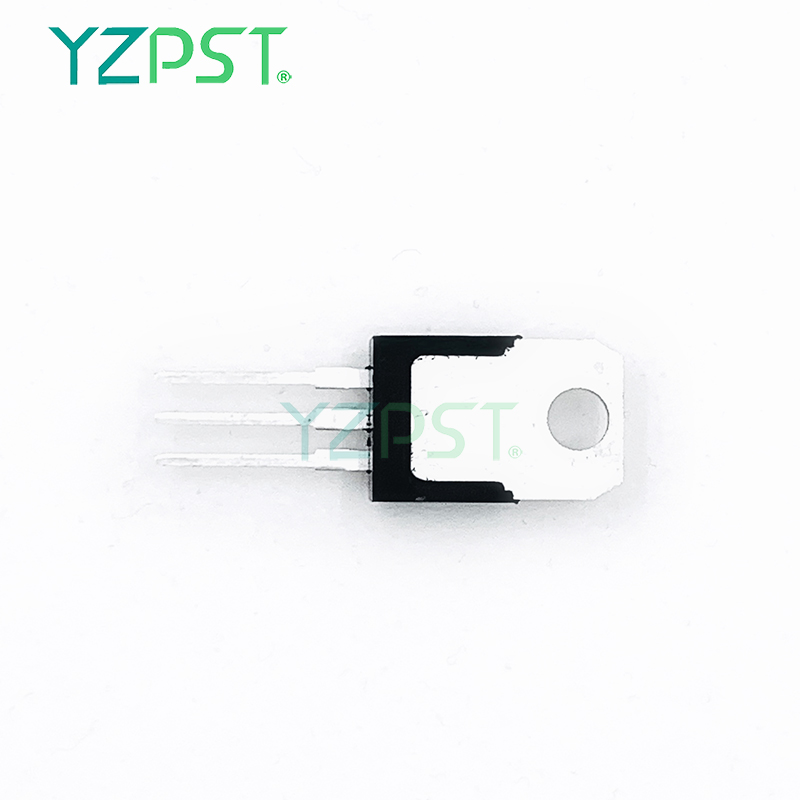

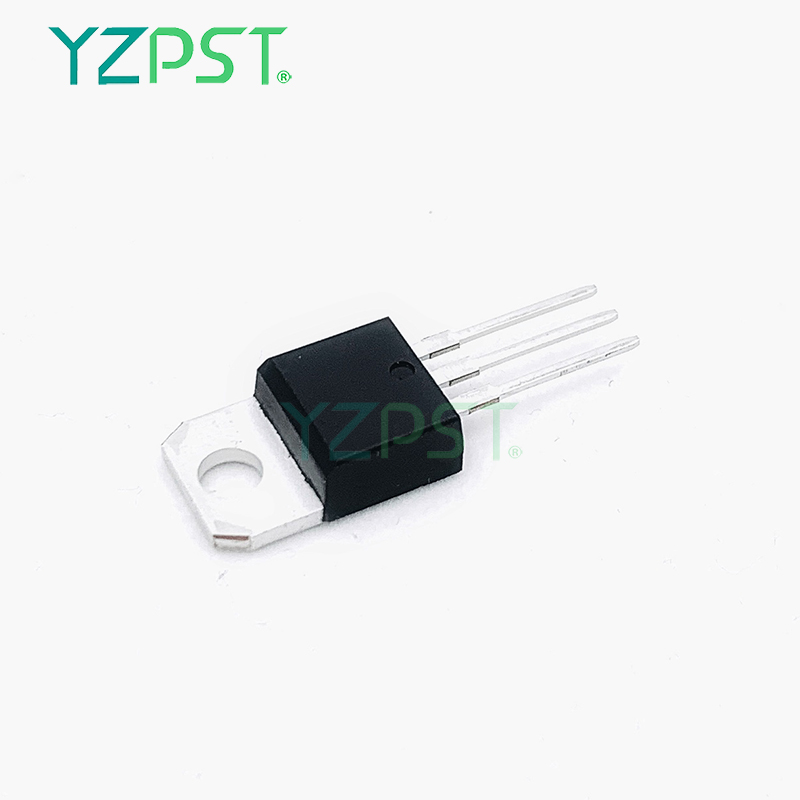

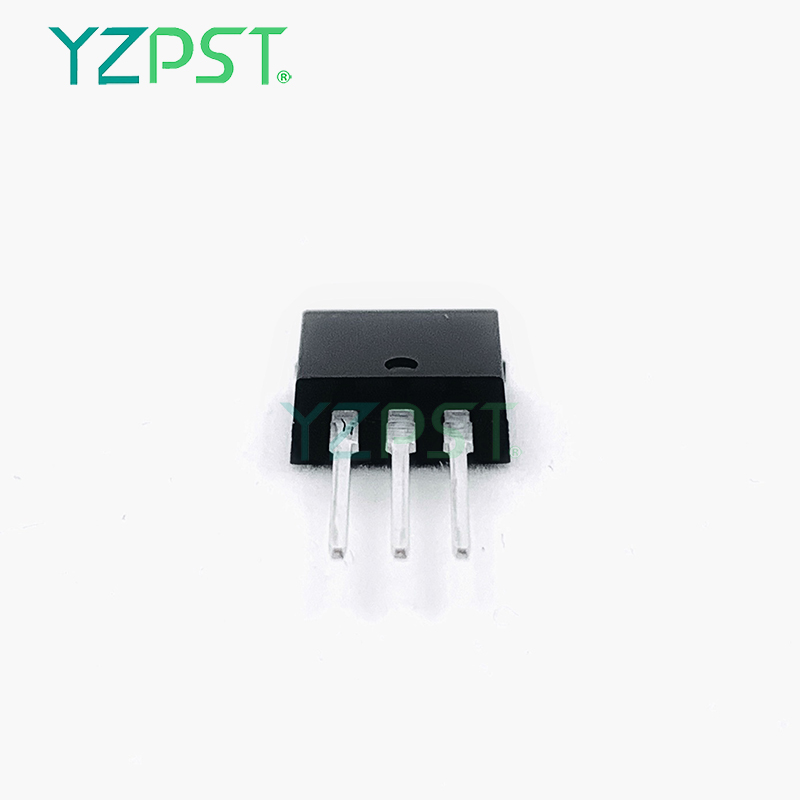

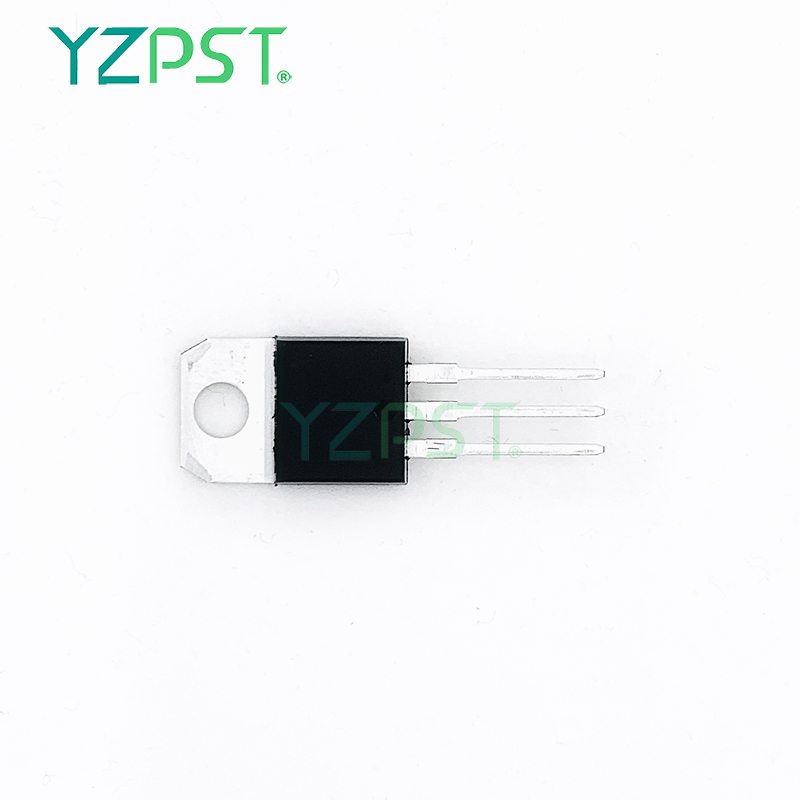

TRIAC
BTA12-600SW
TO-220A Table glass passivation process Voltage stability triac
●Product features
Single mesa structure (Single Mesa),
Table glass passivation process,
Voltage stability
The ability of strong current shock resistance
The applicable model： BTA12
●The main purpose
Washing machine, the hair straightened
Solid state relay, AC motor speed control
●Package
TO-220A
●Main Feature (Tj=25℃)
| Symbol | Value | Unit |
| IT(RMS) | 12 | A |
| VDRM / VRRM | 600/800 | V |
| VTM | 1.55 | V |
●Absolute ratings (Limiting Values)
| Symbol | Parameter | Value | Unit |
| ITSM | Non repetitive surge peak on-state Current (tp=10ms) | 115 | A |
| I2t | (tp=10ms) | 70 | A2S |
| dI/dt | IG=2IGT，tr≤100ns,Tj=125℃ | 50 | A/μs |
| IGM | Peak gate current(tp=20us) | 4 | A |
| PG(AV) | Average gate power | 1 | W |
| Tstg Tj | Storage temperature Operating junction temperature | -40--+150 -40--+125 | ℃ |

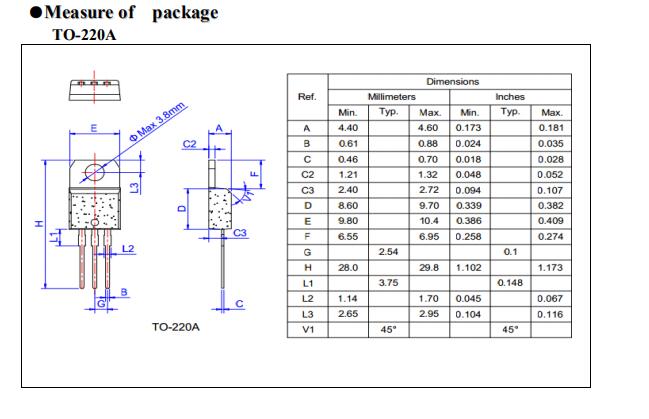

●Measure of package
TO-220A
