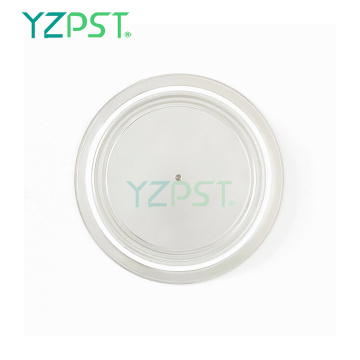

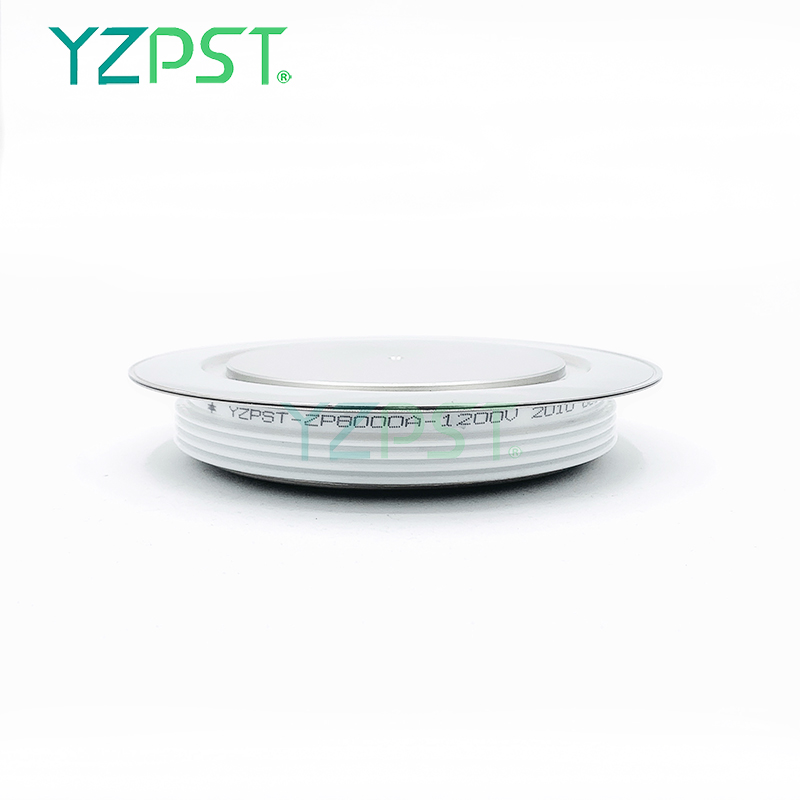

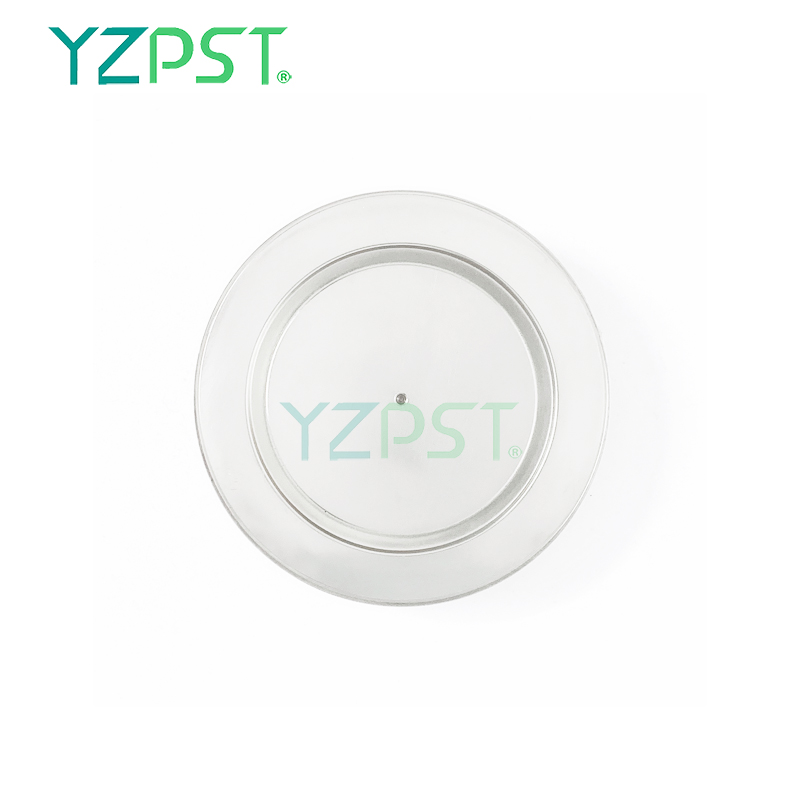

Model No.: YZPST-ZP8000A-1200V
Brand: YZPST
Material: Element Semiconductor
Type: P-type Semiconductor
VRRM: 1200V
VRSM: 1300V
IF(AV): 8410A
IF(RMS): 15025A
IFSM: 72kA
Tjop: -40 To +150℃
Tstg: -40 To +150℃
Additional Info
Packaging: 1. Anti-electrostatic packaging 2. Carton box 3. Plastic protective packaging
Productivity: 100
Transportation: Ocean,Air
Place of Origin: China
Supply Ability: 1000
Certificate: ISO9001-2015,ROHS
Port: SHANGHAI
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF
Product Description
Absolute Maximum Ratings
|
| VOLTAGE RATINGS | MAXIMUM LIMITS | UNITS |
| VRRM | Repetitive peak reverse voltage, Tj=25℃ | 1200 | V |
| VRSM | Non-repetitive peak reverse voltage, Tj=25℃ | 1300 | V |
|
|
|
|
|
|
| OTHER RATINGS | MAXIMUM LIMITS | UNITS |
| IF(AV) | Average forward current, Tj=150℃ | 8410 | A |
| IF(RMS) | Nominal RMS forward current, Tj=25℃ | 15025 | A |
| IFSM | Peak non-repetitive surge tp=10ms, Tj=25℃ | 72 | kA |
| I2t | I2t capacity for fusing tp=10ms, Tj=25℃ | 25.92×106 | A2s |
| Tjop | Operating temperature range | -40 to +150 | ℃ |
| Tstg | Storage temperature range | -40 to +150 | ℃ |
Characteristics
|
| PARAMETER | MIN. | TYP. | MAX. | TEST CONDITIONS | UNITS |
| VFM | Maximum peak forward, Tj=150℃ | - | - | 1.13 | IFM=6800A | V |
| V(T0) | Threshold voltage | - | - | 0.67 |
| V |
| rT | Slope resistance | - | - | 0.038 |
| mΩ |
| IRRM | Peak reverse current | - | - | 100 | Rated VRRM, Tj=150℃ | mA |
|
|
|
| Rated VRRM, Tj=25℃ | |||
| Qrr | Recovered charge | - | - | - |
| μC |
| Irm | Reverse recovery current | - | - | - | Vr=50V, 50% Chord. | A |
| trr | Reverse recovery time, 50% Chord | - | - | - |
| μs |
| RthJK | Thermal resistance, junction to heatsink | - | - | 0.011 | Double side cooled | K/W |
|
| - | 0.022 | Single side cooled | |||
| F | Mounting force | 63 | - | 91 |
| kN |
| Wt | Weight | - | - | - |
| g |

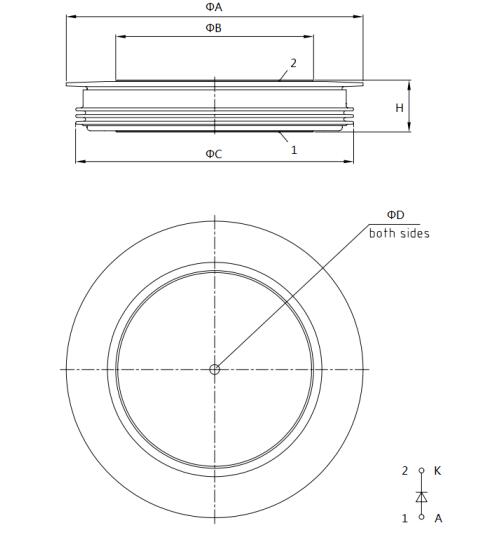

Outline Drawing
| Type | Sym | A | B | C | D | H |
|
| mm | 150 | 100 | 108 | 3.5×3 | 26±1 |
Product Categories : Semiconductor Disc Devices(Capsule Type) > Rectifier Diode(Standard Diode)
