YANGZHOU POSITIONING TECH CO., LTD.
Home > Products > Electronic Components Resistor > Thick Film Chip Resistors > RPVH120 Power Thick Film Resistors

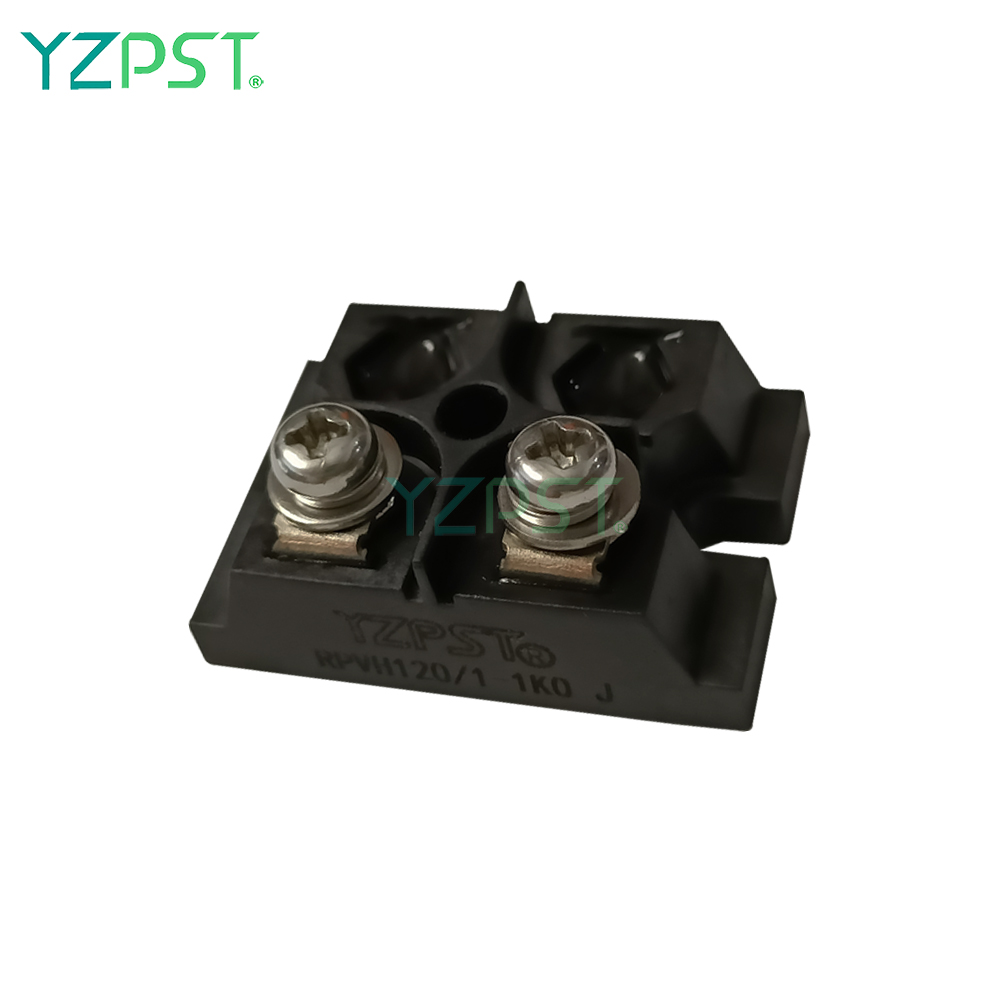

RPVH120 Power Thick Film Resistors
RPVH120 Power Thick Film Resistors
  • RPVH120 Power Thick Film Resistors
  • RPVH120 Power Thick Film Resistors

RPVH120 Power Thick Film Resistors

    Unit Price: USD 12 - 8 / Others
    Payment Type: L/C,T/T,Paypal
    Incoterm: FOB,CFR,CIF

Download:

Contact Now

Basic Info

Model No.YZPST-RPVH120-1K

BrandYZPST

Supply TypeOriginal Manufacturer, Odm, Agency

Reference MaterialsPhoto, Datasheet, Eda/Cad Models

SpeciesPhotoresistor

CraftThick Film

Package TypeSurface Mount

IngredientNot Applicable

Coating, Shell TypeNot Applicable

Circuit TypeIsolated, Decade Resistor

Resistance /Ω1--1M

Allowable Deviation±5%

Temperature Coefficient±250ppm/℃(25-85℃)

Maximum Working Voltage1500V DC

Insulation Withstand Voltage5KV DC 1min

Distributed Capacitance<45pF

Insulation Resistance>10GΩ

Range Of Working Temperature-55℃-+155℃

Additional Info

Productivity10000

TransportationOcean,Air

Place of OriginCHINA

Supply Ability100000

CertificateISO9001-2008,ROHS

HS Code8533100000

PortSHANGHAI

Payment TypeL/C,T/T,Paypal

IncotermFOB,CFR,CIF

Product Description

RPVH120 Power Thick Film Resistors

Scope:
This specification specifies the general characteristics and requirements for RPVH 120 power type thick film resistors.
Dimensions:Size name:mm Package type: SOT-227
RPVH120 Power Thick Film Resistors

Resistor structure:

Power Thick Film Resistors

Reference Standard:

GB/T 5729-2003 Fixed Resistors for Electronic Equipment Part 1: General Specification

GB/T 2828.1-2012 Batch-by-batch inspection technical sampling procedure and sampling table GB/T 2691-2016 Marking method of resistors and capacitors
The main technical parameters:

Rated power

When the base plate temperature is 70, the rated power is 120W

Resistance /Ω

1--1M

Allowable deviation

±5%

Temperature Coefficient

±250ppm/℃(25-85)

Maximum working voltage

1500V DC

Insulation withstand voltage

5KV DC 1min

Distributed capacitance

45pF

Insulation resistance

10GΩ

Range of working temperature

-55-+155

Main inspection items, inspection methods and performance requirements:

project



Test conditions



Performance requirement

Terminal strength

Soft lead pull: 10N, stud type 1.0N.m torque

ΔR≤±(1%R+0.05Ω)

high frequency vibration

Frequency 10~500Hz, 10g, 6h

ΔR≤±(1%R+0.05Ω)

overload

Apply 1.5 times the rated power voltage for

10s



ΔR≤±(0.4%R+0.1Ω)

Room temperature durability

The rated power load is 1000 h, and the

bottom plate temperature is less than 70



ΔR≤±(5%R+0.05Ω)

Radiator installation method and requirements

The resistor is installed on the radiator with 2 M4 screws, and the installation torque is less than or equal to 1.3N.m (to ensure the use of power and excellent heat dissipation);
The contact surface must be cleaned;

The flatness of the radiator is: 0.05mm-0.1mm (within the range of 100mm); The roughness of the radiator must be 6.3цm;
To improve thermal conductivity, contact surfaces (alumina, heat sinks) should be coated with silicone grease.

Product Categories : Electronic Components Resistor > Thick Film Chip Resistors
