High current rating Standard Rectifier Diode 1600V

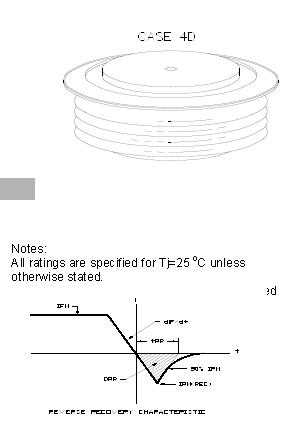

YZPST-ZP6000A1600V

Standard Rectifier------ZP6000A/1600V

GENERAL PURPOSE HIGH POWER STANDARD RECTIFIER

Features:. High Surge rating     . Soft Reverse Recovery  . All Diffused Structure

             . Rugged Ceramic Hermetic Package  . Pressure Assembled Device

Typical Applications:  . Rectifier for Drives Applications   . Pulsed power applications

                               . Medium voltage converters   . Crowbar Applications

ELECTRICAL CHARACTERISTICS AND RATINGS

Reverse Blocking

VRRM (1)

VRSM (1)

1600

1700

       VRRM = Repetitive peak reverse voltage

       VRSM = Non repetitive peak reverse voltage (2)

Repetitive peak reverse leakage

IRRM

15 mA

90 mA

CStandard Rectifier YZPST-ZP6000A/1600V

onducting - on state

Parameter

Symbol

Min

Max.

Typ

Units

Conditions

Max. Average value of on-state current

IF(AV)M

6000

A

Sinewave,180oconduction,Tc=100oC

RMS value of on-state current

IFRMS

8460

A

Nominal value

Peak one cycle surge

(non repetitive) current

IFSM

75

kA

Tj=150°C, VR=0,8VRRM, tp=10ms

I square t

I2t

23x103

kA2s

10 msec

Peak on-state voltage

VFM

0.95

V

IFM = 2000 A; Tj = 25 oC

Reverse Recovery Current (4)

IRM(REC)

290

A

IFM = 1000 A; dIF/dt = 10 A/ms,

Tj = 160 oC

Reverse Recovery Charge (4)

Qrr

-

mC

Reverse Recovery Time (4)

tRR

-

ms

* For guaranteed maximum values, contact factory

THERMAL AND MECHANICAL CHARACTERISTICS

Parameter

Symbol

Min.

Max.

Typ.

Units

Conditions

Operating temperature

Tj

-55

+150

oC

Storage temperature

Tstg

-55

+150

oC

Thermal resistance - junction to case

RQ (j-c)

12

24

oC/kW

Double sided cooled

Single sided cooled

Thermal resistance - case to sink

RQ (c-s)



2

4

oC/kW

Mounting force

P

63

77

kN

Weight

W

-

g

     * Mounting surfaces smooth, flat and greased



Standard Rectifier YZPST-ZP6000A/1600V
