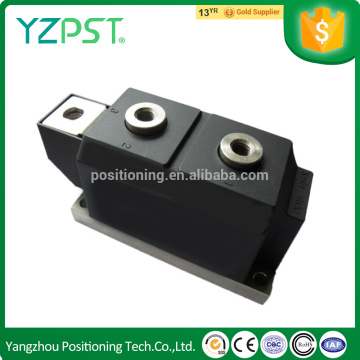

Dual Thyristor Modules
YZPST-MTC1000A1600V
Features • Heat transfer through aluminium nitride ceramic isolated metal baseplate
• Precious metal pressure contacts for high reliability • Thyristor with amplifying gate
TYPE: MTC1000A – 1600V Typical Applications • DC motor control • Temperature control • Professional light dimming
Maximum Ratings
Symbol | Condition | Ratings | Unit |
IT(AV) | Single phase,half wave,sin 180° conduction ;TC=85°C | 1000 | A |
ITRMS | Single phase,half wave,sin 180° conduction ;TC=85°C | 1484 | A |
ITSM | Tj=125°C | 30 | kA |
I2t | Tj=125°C | 4300 | kA2S |
VDRM/VRRM | Tj=125°C | 1600/1600 | V |
di/dt | non-repetitive | 100 | A/us |
Viso | A.C.1minute | 2500 | V |
Tj |
| -40 ~ + 125 | °C |
Tstg |
| -40 ~ + 125 | °C |
W | About | 3.6 | Kg |
Electrical Characteristics
Symbol | Condition | Ratings | Unit |
IDRM /IRRM | AtVDRM,Single phase,half wave,Tj=125°C | 100 | mA |
VTM | On-State Current 3000A,Tj=125°C | 1.55 | V |
VT(TO) | Tj=125°C | 0.8 | V |
rT | Tj=125°C | 0.09 | mΩ |
RK1G1 |
| - | Ω |
RK2G2 |
| - | Ω |
tgd | Tj=25°C;VD=0.4VDRM ; ITM=ITAV | - | us |
tq | dvD/dt=50V/us;Tj=125°C; ITM=ITAV | - | us |
IGT/VGT | Tj=25°C,IT=1A,VD=6V | 200 / 3.0 | mA/V |
VGD | VD=67%VDRM | 0.2 | V |
DV/DT | VD=67%VDRM | 800 | V/us |
IH | Tj=25°C | 300 | mA |
IL | Tj=25°C | 800 | mA |
Rth(j-c) | Thermal resistance Junction to case | 0.31 | °C/kW |
Rth(c-h) | Thermal resistance case to heatsink | 0.20 | °C/kW |
Product Categories : Semiconductor Module Devices > Thyristor Module
