| Unit Price: | USD 12 - 8.5 / Piece/Pieces |
|---|---|
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CFR,CIF |
Download:
Basic Info
Model No.: YZPST-CD294
Brand: YZPST
Place Of Origin: China
Rat Ed Volt Age (VDC): 400
Capa C Itanc E (μ F): 2200
Dimension (D× L, Mm): 51*115
Volt Ag E (Vdc）: 450V
Leakage Current(μA) At 20℃ Afte R 1 Minu: 8800
Ripple Current At 85℃ 120Hz (A): 7810
Additional Info
Packaging: 1. Anti-electrostatic packaging 2. Carton box 3. braid
Productivity: 100000000
Transportation: Ocean,Land,Air,Express
Place of Origin: CHINA
Supply Ability: 10000000
Port: SHANGHAI
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF
Product Description

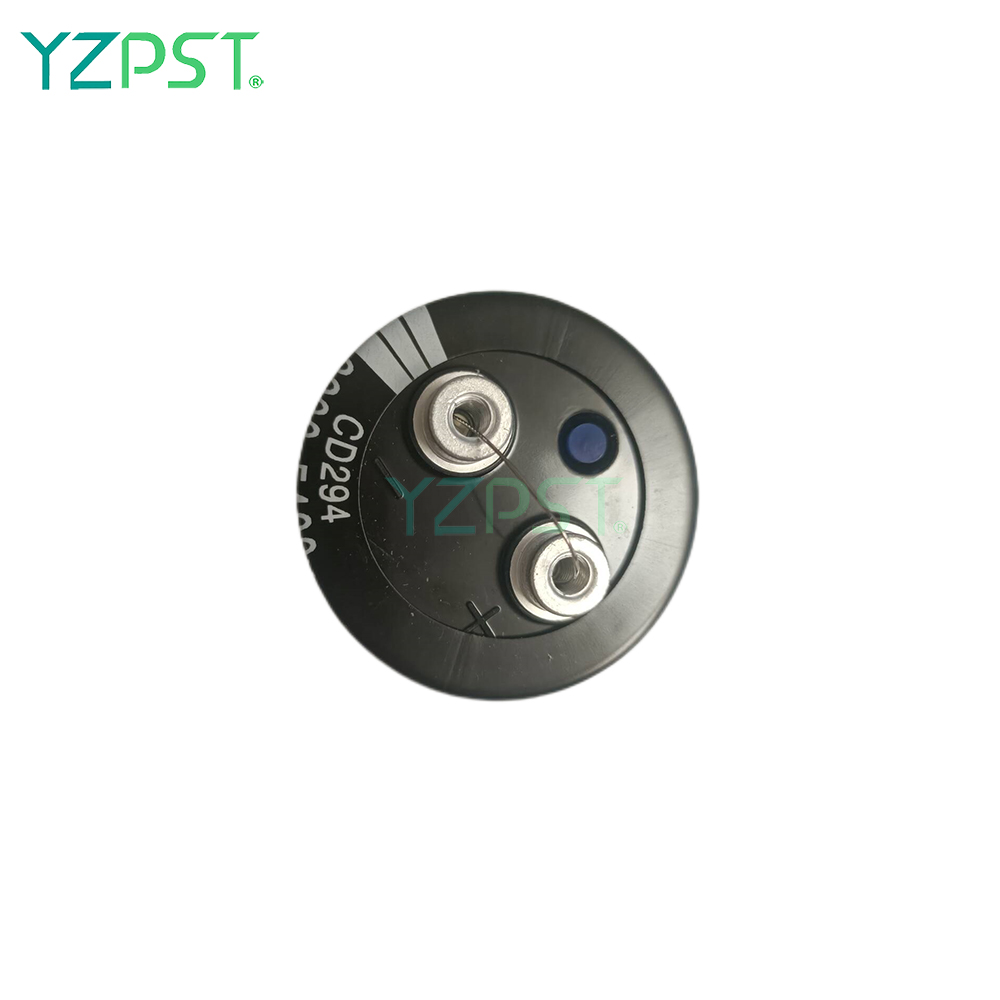

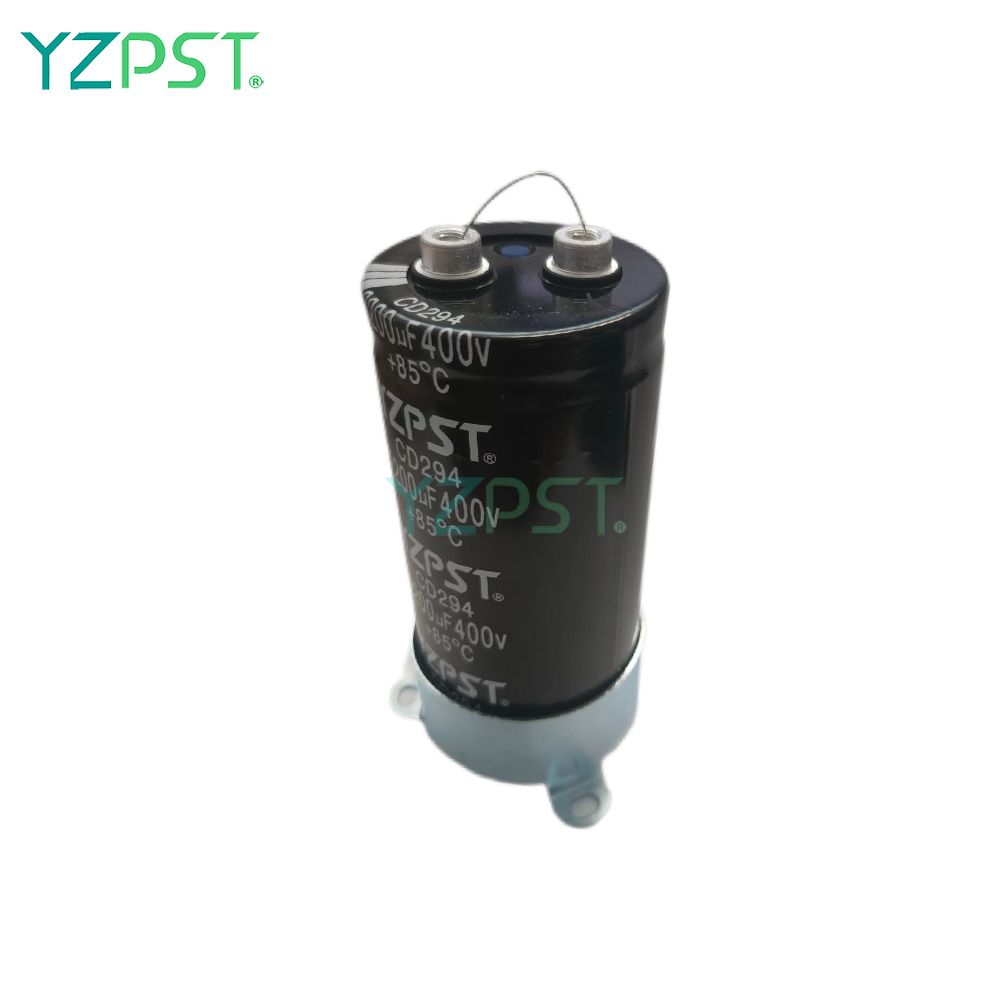

2200UF400V Aluminum Electrolytic Capacitors
YZPST-CD294
|
客 户代 码 Part Number | 额定电压 Rated Voltage (V DC ) |
标称容量 Capacitance ( μ F) | 尺寸 Dimension (D × L , mm) |
标称电容量允 许 正 负公 差 ( % ) | 浪涌 电压 Surge Volta g e (V dc | 损耗 角正 切值 tg δ | 漏电流 Leakage Current ( μA) at 20 ℃ after 1 minutes | 纹波电流 Ripple Current at 85 ℃ 12 0 Hz (A) | 温度寿命 Endurance at 85 ℃ (Hours ) |
|
| 40 0 | 2 20 0 | 51*115 | -2 0 ％ ~ + 2 0 % | 45 0 V | 0 .2 | 880 0 | 7 81 0 | 80 0 0 |
Case size table
Operating Temperature Range
-25℃~+85℃
Dissipation Factor (25℃,120Hz)
| Rated voltage(v) | 400 |
| (tg δ) Tangant of angle | 0.2 |
Surge voltage
| Rated voltage(v) | 400 |
| Surge voltage(v) | 450 |
Frequency Coefficients
| Frequency(Hz) | 50 | 100(120) | 300 | 1K | ≥10K |
| Factor | 0.7 | 1.0 | 1.10 | 1.30 | 1.40 |
